ASUS ProArt B760-CREATOR ATX Motherboard for Intel LGA1700 CPUs

90MB1F20-M1EAY0

Key Features:

Form Factor: ATX
Socket: LGA1700
Memory: DDR5 (Max: 192GB)
Storage: 3 x M.2, 4 x SATA
USB: 9 port(s)

Intel® B760 LGA 1700 ATX motherboard built for creators, with PCIe® 5.0, DDR5, 2.5 Gb and 1 Gb Ethernet, three M.2 slots, plus a USB 3.2 Gen 2x2 front-panel connector with 60W Quick Charge 4+

ASUS ProArt B760-CREATOR ATX Motherboard for Intel LGA1700 CPUs

90MB1F20-M1EAY0

Was £289.43

SAVE £99

Now only

£189.99 inc VAT

Add to Basket

Available for delivery from Tuesday 12th August

or Click & Collect from Tomorrow

4 In Stock Now

CCL Code: MBD3495

Form Factor: ATX
Socket: LGA1700
Memory: DDR5 (Max: 192GB)
Storage: 3 x M.2, 4 x SATA
USB: 9 port(s)

Overview

ProArt B760-Creator is an enhanced motherboard designed for content creation workloads like virtual production, 3D rendering and 4K/8K video editing. It unleashes the performance of 13th & 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C® front-panel connector with 60W Quick Charge 4+ and a Thunderbolt™ 4 header.

Main Features

Intel LGA 1700 Socket: Ready for 13th & 12th Gen Intel Core processors
Comprehensive connectivity: 2.5 Gb & 1 Gb onboard Ethernet, three M.2 slots, Thunderbolt header support and a USB 3.2 Gen 2x2 Type-C front-panel connector with 60W Quick Charge 4+
Next-gen performance: 12+1 power stages rated for 50 amps, PCIe 5.0 ready
Optimized thermal design: Enlarged VRM heatsinks, aluminum M.2 heatsinks, six 4-pin PWM fan headers and an AIO pump header
ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
Advanced security management: USB port restriction, software blacklisting and Windows Registry protection via ASUS Control Center Express

Promotions

Get 5% off selected components when you buy 3 or more

*For a limited time, purchase three qualifying components from different categories and get 5% off at when you use code BUY3GET5 at checkout.

To see qualifying products, visit our promotion here.
Terms & Conditions apply.

Promotional Period: From 10AM July 16^th 2025 till August 31^st 2025, while stocks last.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on selected qualifying products and in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one graphics card, one motherboard and one cooler). It will not apply to multiples from categories (e.g. three SSDs).

Discount will be applied to the items in your basket when you use code "BUY3GET5" at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code. Product exclusions may apply to this offer at our discretion.

Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 10AM July 16th 2025 till August 31st 2025, while stocks last.

Specifications

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1700

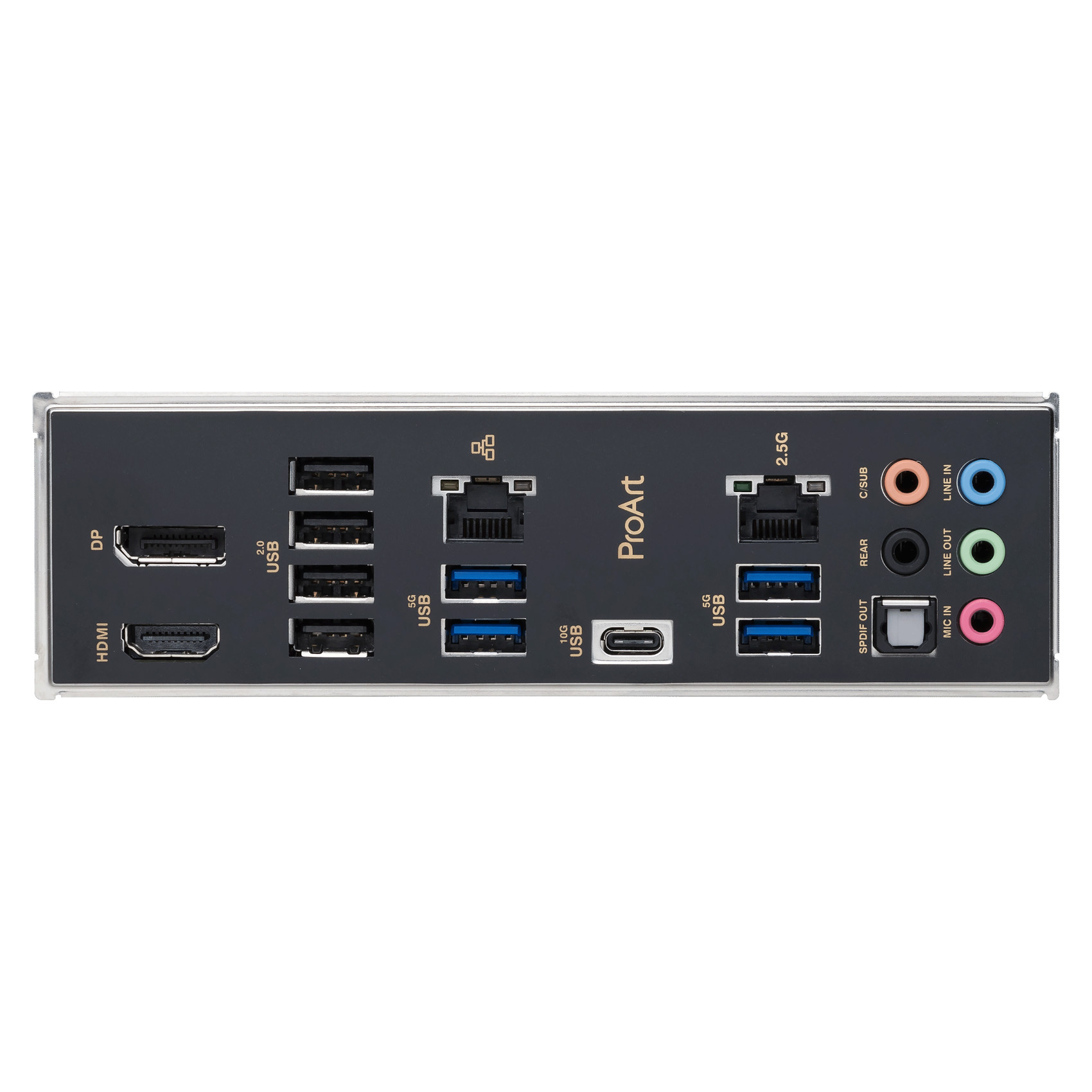

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.1 4 x USB 3.0 4 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	2 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	3 x 3.5mm Jacks
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU_OPT fan header 1 x AIO pump header 4 x Chassis fan headers
Thunderbolt Port(s)	1 x Thunderbolt header
Serial Connectors	1 x COM header
TPM Header	1 x SPI TPM header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS 1 x 6-pin PD_12V
Other Connectors	2 x M.2 slots, Key M, Type 2242/2260/2280/22110 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2242/2260/2280/22110 (PCIe Gen3) 1 x M.2 slot, Key E, for Wi-Fi 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header 1 x Thermal Sensor header

Memory

Memory Type	DDR5
Maximum RAM	192 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	Intel B760
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek

Network

Integrated Network	Realtek Intel
Network Speeds Supported	Realtek: Up to 2.5Gbps Intel: Up to 1Gbps
Wireless LAN	No
Bluetooth	No

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

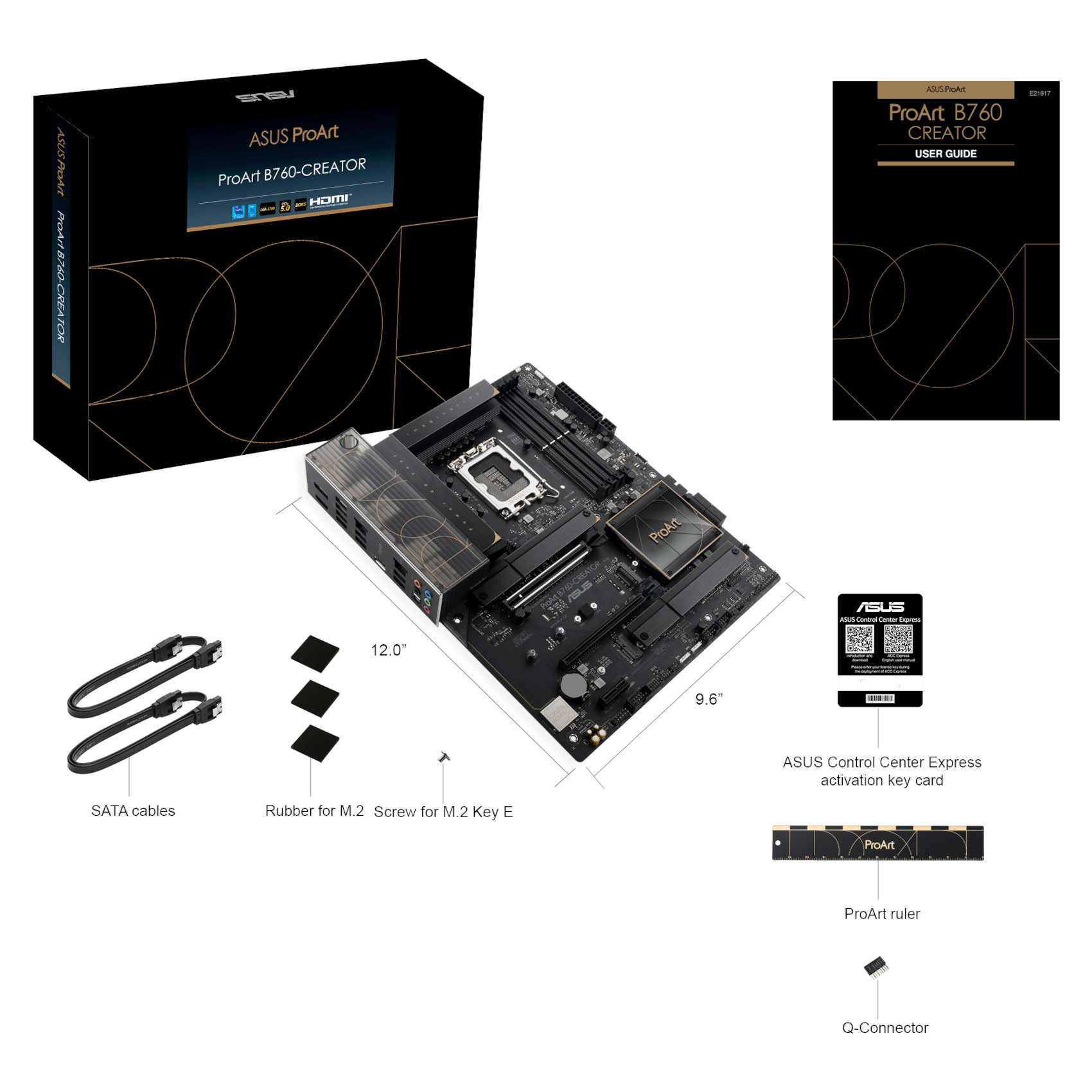

In The Box	Motherboard 2 x SATA 6Gb/s cables 2 x M.2 Rubber packages 1 x Screw package for M.2 Key E 1 x ProArt ruler 1 x Q-connector 1 x ACC Express Activation Key Card 1 x User guide
Width	244 mm
Length	305 mm

Key Features

Wireless Network	No
Motherboard Width	244 mm
Motherboard Height	305 mm
mSATA Supported	No
U.2 Supported	No
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	9 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	4-Pin + 8-Pin
Motherboard Chipset	Intel B760
Thunderbolt	No
Motherboard Model	ASUS ProArt B760-CREATOR
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	5200 MT/s
Max Memory Speed Supported (overclocked)	6400 MT/s
CPU Power Pins (female)	12
PCI Express Power Pins (female)	6
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1

Item Details

Manufacturer	ASUS
Manufacturer Code	90MB1F20-M1EAY0
Alternative Part Number	90MB1F20-M0EAY0
EAN	4711387179727
UPC	197105179721
Condition	New

Warranty

Warranty Information

Warranty

3 Years

Manufacturer Information

Manufacturer	ASUS
Manufacturer Code	90MB1F20-M1EAY0
