ASRock Z790 Nova WiFi ATX Motherboard for Intel LGA1700 CPUs

Compare

ASRock Z790 Nova WiFi ATX Motherboard for Intel LGA1700 CPUs

90-MXBMB0-A0UAYZ

Key Features:

Form Factor: ATX
Socket: LGA1700
Memory: DDR5 (Max: 192GB)
Storage: 6 x M.2, 4 x SATA
Wi-Fi: Built-in
USB: 10 port(s)

ASRock Z790 Nova WiFi ATX Motherboard for Intel LGA1700 CPUs

90-MXBMB0-A0UAYZ

Was £319.99

SAVE £46

Now only

£273.99 inc VAT

Add to Basket

Available for delivery from Tuesday 12th August

or Click & Collect from Tomorrow

Hurry, only 1 left!

CCL Code: MBD3620

Form Factor: ATX
Socket: LGA1700
Memory: DDR5 (Max: 192GB)
Storage: 6 x M.2, 4 x SATA
Wi-Fi: Built-in
USB: 10 port(s)

Overview

Nova is the most significant energy discharge ever witnessed by mankind, it’s super-powerful which represents the performance our motherboard can deliver.

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

Main Features

Supports 14th, 13th & 12th Gen Intel© CoreT Processors (LGA1700)
20+1+1 Power Phase, SPS for VCore+GT, 8-Layer 2OZ PCB
4 x DDR5 DIMMs, supports up to 8000+(OC)
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: 1 HDMI, 1 DisplayPort
Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 4 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front), 4 USB 3.2 Gen2 Type-A (Rear), 7 USB 3.2 Gen1 Type-A (3 Rear, 4 Front)
Intel Killer 2.5G LAN
802.11be WiFi 7 + Bluetooth
Supports Graphics Card Holder, Toolless Multi-Layer M.2 Heatsink

Promotions

Get 5% off selected components when you buy 3 or more

*For a limited time, purchase three qualifying components from different categories and get 5% off at when you use code BUY3GET5 at checkout.

To see qualifying products, visit our promotion here.
Terms & Conditions apply.

Promotional Period: From 10AM July 16^th 2025 till August 31^st 2025, while stocks last.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on selected qualifying products and in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one graphics card, one motherboard and one cooler). It will not apply to multiples from categories (e.g. three SSDs).

Discount will be applied to the items in your basket when you use code "BUY3GET5" at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code. Product exclusions may apply to this offer at our discretion.

Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 10AM July 16th 2025 till August 31st 2025, while stocks last.

Specifications

CPU

CPU Socket	Socket 1700
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	14th, 13th & 12th Gen Intel Core Processors
64-bit Support	Yes
Socket	LGA1700

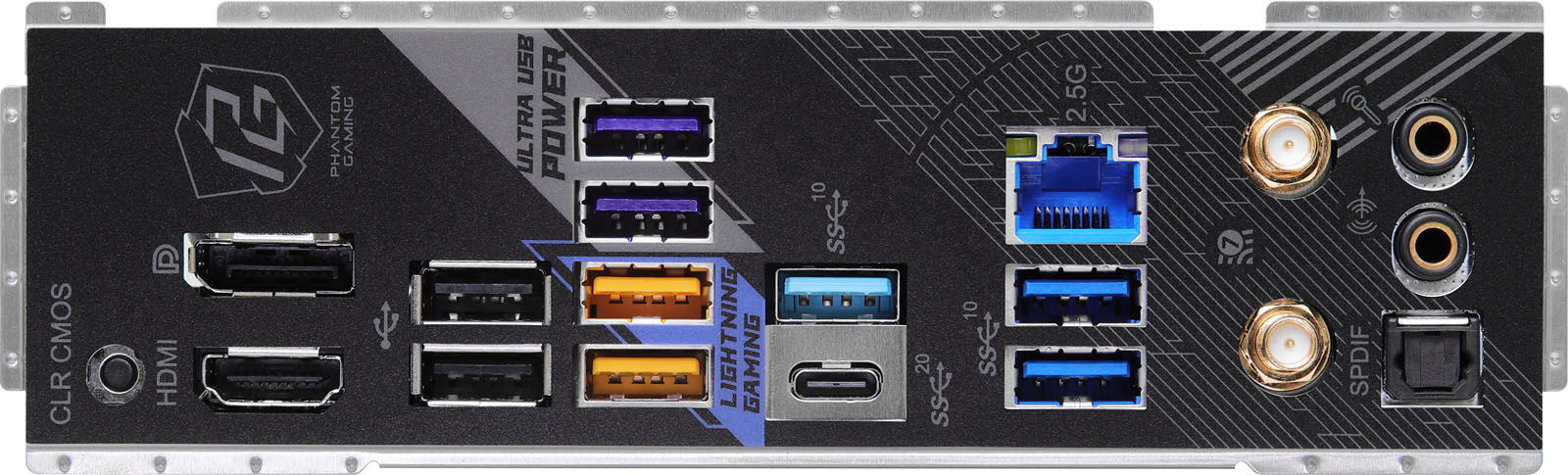

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.2 4 x USB 3.1 3 x USB 3.0 2 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 2 x USB 3.0 headers (supports 4 ports) 2 x USB 2.0 headers (supports 4 ports)
Speaker	1 x Speaker header
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU/Water Pump fan header 5 x Chassis/Water Pump fan headers
Thunderbolt Port(s)	1 x Thunderbolt AIC Connector (Supports ASRock Thunderbolt 4 AIC Card)
TPM Header	1 x SPI TPM header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen5) 4 x M.2 slots, Key M, Type 2260/2280 (PCIe Gen4) 1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen4 or SATA) 3 x 3-pin ARGB LED headers 1 x 4-pin RGB LED header

Memory

Memory Bus Speed	Up to 8000 MHz
Memory Type	DDR5
Maximum RAM	192 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	Intel Z790
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
1 x PCI Express 4.0 x16 slot (@ x4)
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC4082

Network

Integrated Network	Killer E3100G
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes - Wi-FI 7
Wireless Network Speed	Up to 5.8 Gbps
Bluetooth	Yes
Bluetooth Version	5.4

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

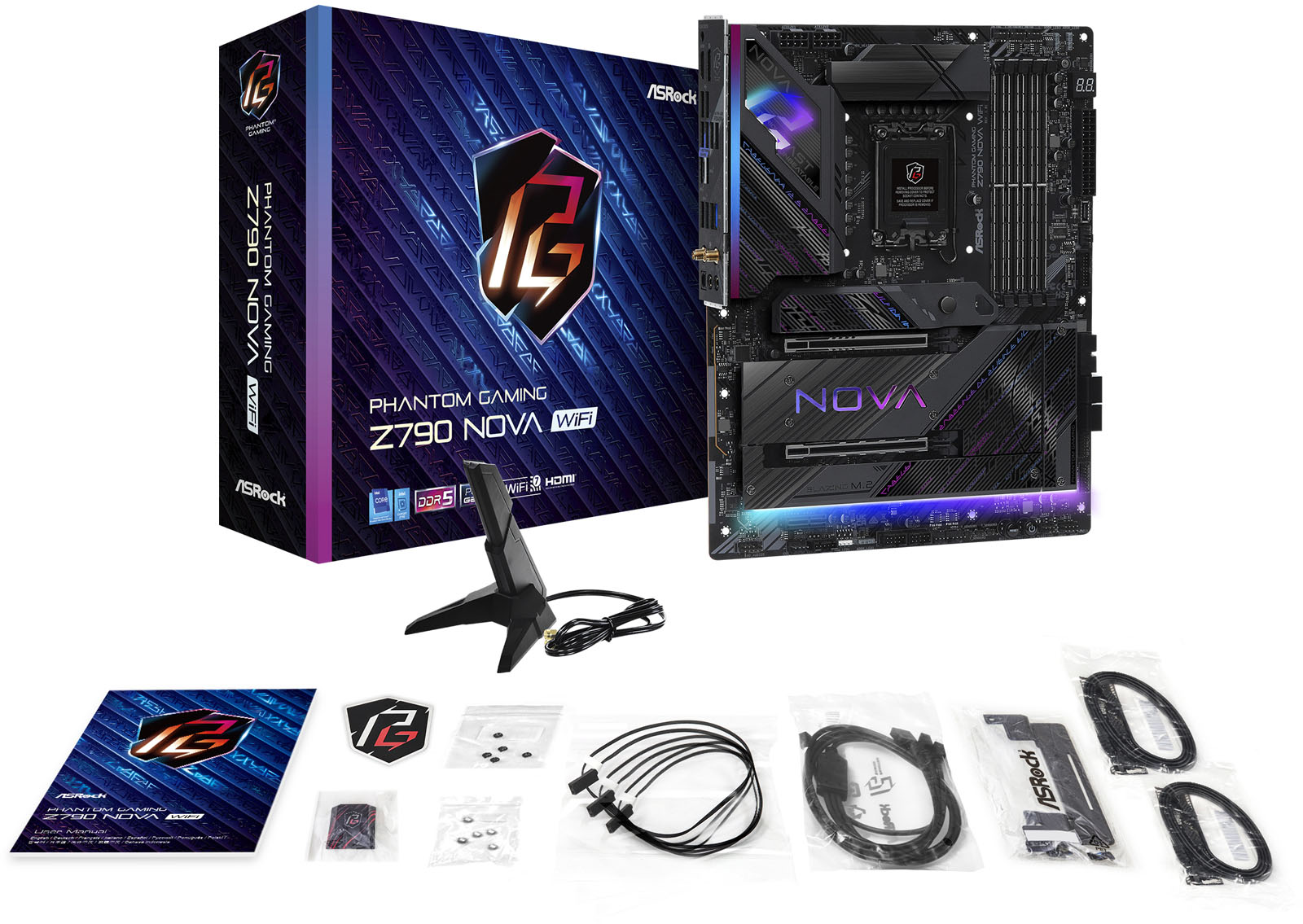

In The Box	Motherboard User Manual 4 x SATA Data Cables Graphics Card Holder ASRock WiFi 2.4/5/6 GHz Antenna ARGB Splitter Cable 3 x Thermistor Cables 5 x Screws for M.2 Sockets 5 x Standoffs for M.2 Sockets
Width	244 mm
Length	305 mm

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
mSATA Supported	No
U.2 Supported	No
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	10 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	Intel Z790
Thunderbolt	No
WiFi Speed	5800 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASRock RGB LED
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	4800 MT/s
Max Memory Speed Supported (overclocked)	8000 MT/s
CPU Power Pins (female)	16
Total M.2 Slots	6
Maximum NVMe M.2 ports	6
Maximum SATA M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	4
No. of front USB-C ports supported	1

Item Details

Manufacturer	ASRock
Manufacturer Code	90-MXBMB0-A0UAYZ
EAN	4710483944482
Condition	New

Warranty

Warranty Information

Warranty

3 Years

Manufacturer Information

Manufacturer	ASRock
Manufacturer Code	90-MXBMB0-A0UAYZ
