ASUS Prime H510M-K R2.0 mATX Motherboard for Intel LGA1200 CPUs

90MB1E80-M0EAY0

Key Features:

Form Factor: mATX
Socket: LGA1200
Memory: DDR4 (Max: 64GB)
Storage: 1 x M.2, 4 x SATA
USB: 6 port(s)

Intel® H470 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, HDMI™, VGA, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, Intel® Optane Memory Ready, FAN Xpert, Armoury Crate, 5X PROTECTION III

ASUS Prime H510M-K R2.0 mATX Motherboard for Intel LGA1200 CPUs

90MB1E80-M0EAY0

£75.99 inc VAT

Add to Basket

Available for delivery from Tuesday 12th August

or Click & Collect from Tomorrow

5 In Stock Now

CCL Code: MBD3903

Form Factor: mATX
Socket: LGA1200
Memory: DDR4 (Max: 64GB)
Storage: 1 x M.2, 4 x SATA
USB: 6 port(s)

Overview

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 11th and 10th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-K R2.0 provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Main Features

Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Processors
Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, 1 Gb Ethernet and USB 3.2 Gen 1
Comprehensive cooling: PCH heatsink and Fan Xpert
5X Protection III: Multiple hardware safeguards for all-round protection

Promotions

Get 5% off selected components when you buy 3 or more

*For a limited time, purchase three qualifying components from different categories and get 5% off at when you use code BUY3GET5 at checkout.

To see qualifying products, visit our promotion here.
Terms & Conditions apply.

Promotional Period: From 10AM July 16^th 2025 till August 31^st 2025, while stocks last.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on selected qualifying products and in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one graphics card, one motherboard and one cooler). It will not apply to multiples from categories (e.g. three SSDs).

Discount will be applied to the items in your basket when you use code "BUY3GET5" at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code. Product exclusions may apply to this offer at our discretion.

Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 10AM July 16th 2025 till August 31st 2025, while stocks last.

Specifications

CPU

CPU Socket	Socket 1200
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
64-bit Support	Yes
Socket	LGA1200

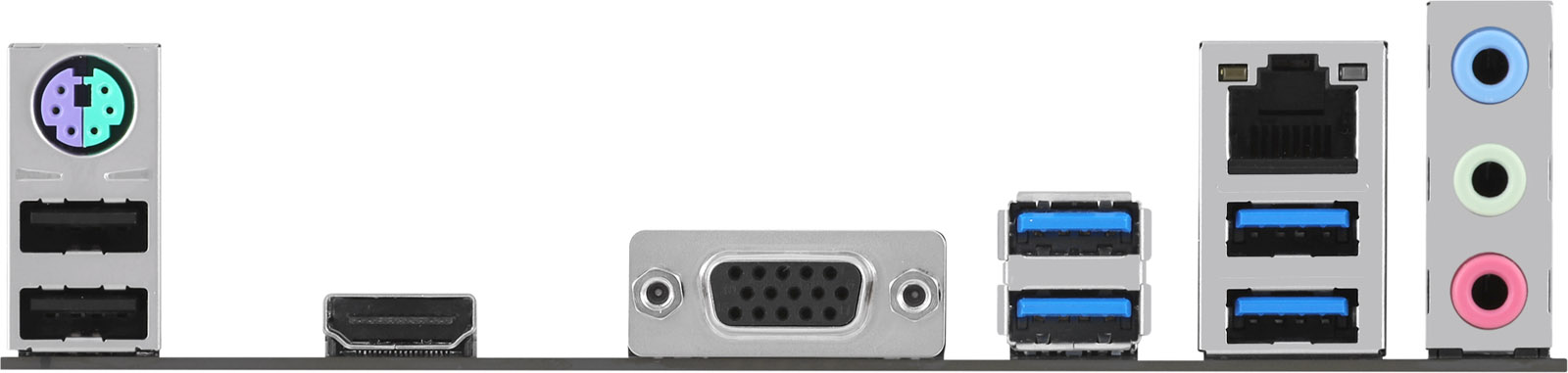

Rear Panel I/O Ports

USB Ports	4 x USB 3.0 2 x USB 2.0
HDMI Port	1 x HDMI 1.4
VGA Port	1 x D-Sub
Keyboard/Mouse Combo Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors	4 x SATA
USB Connectors	1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Speaker	1 x Speaker header
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Chassis fan header
S/PDIF Connectors	1 x S/PDIF Out header
Serial Connectors	1 x COM header
TPM Header	1 x SPI TPM header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen3 or SATA) 1 x 4-pin RGB header

Memory

Memory Bus Speed	Up to 3200 MT/s
Memory Type	DDR4
Maximum RAM	64 GB
Memory Slot	2 x DIMM

Motherboard

Northbridge	Intel H470
RAID Supported	No
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek

Network

Integrated Network	Realtek
Network Speeds Supported	Up to 1 Gbps
Wireless LAN	No
Bluetooth	No

System Requirements

Operating Systems Supported

Microsoft Windows 10 64-bit

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	mATX Motherboard
In The Box	Motherboard 2 x SATA Cables I/O Shield M.2 Anchor User Guide
Width	203 mm
Length	226 mm

Key Features

RDIMM Memory Supported	No
Wireless Network	No
Motherboard Width	203 mm
Motherboard Height	226 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	6 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	Yes
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	Intel H470
Thunderbolt	No
Motherboard Model	ASUS Prime H510M-K R2.0
USB 3.1 Support	No
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	ASUS Aura Sync
RGB Header Type	4-Pin RGB
Addressable RGB	No
Internal USB Type-C Header	No
Power Requirement (auto)	60 W
Max Memory Speed Supported (Non-overclocked)	2933 MT/s
Max Memory Speed Supported (overclocked)	3200 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	1
Maximum NVMe M.2 ports	1
Maximum SATA M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
Back Connect Support	No
