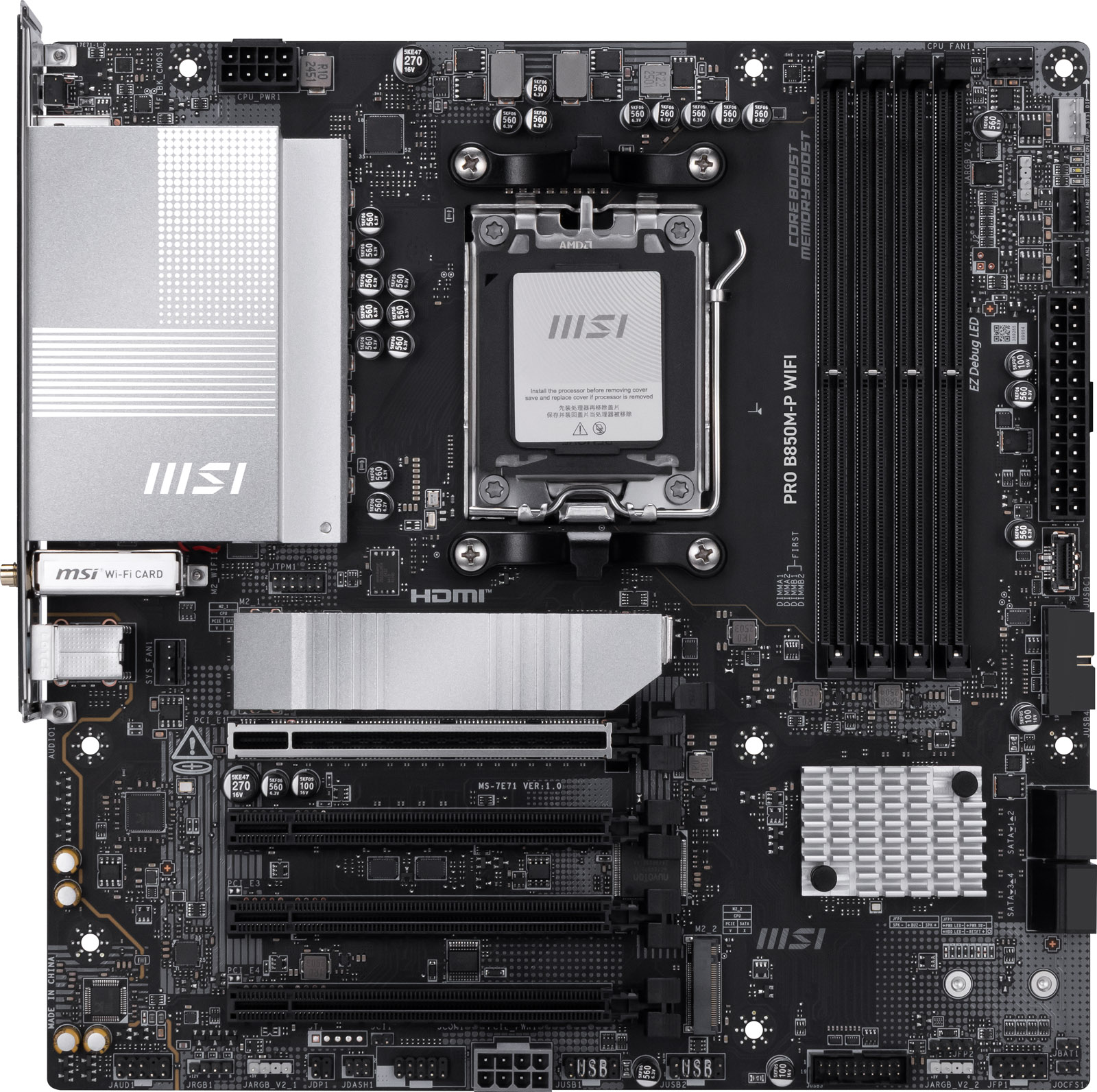

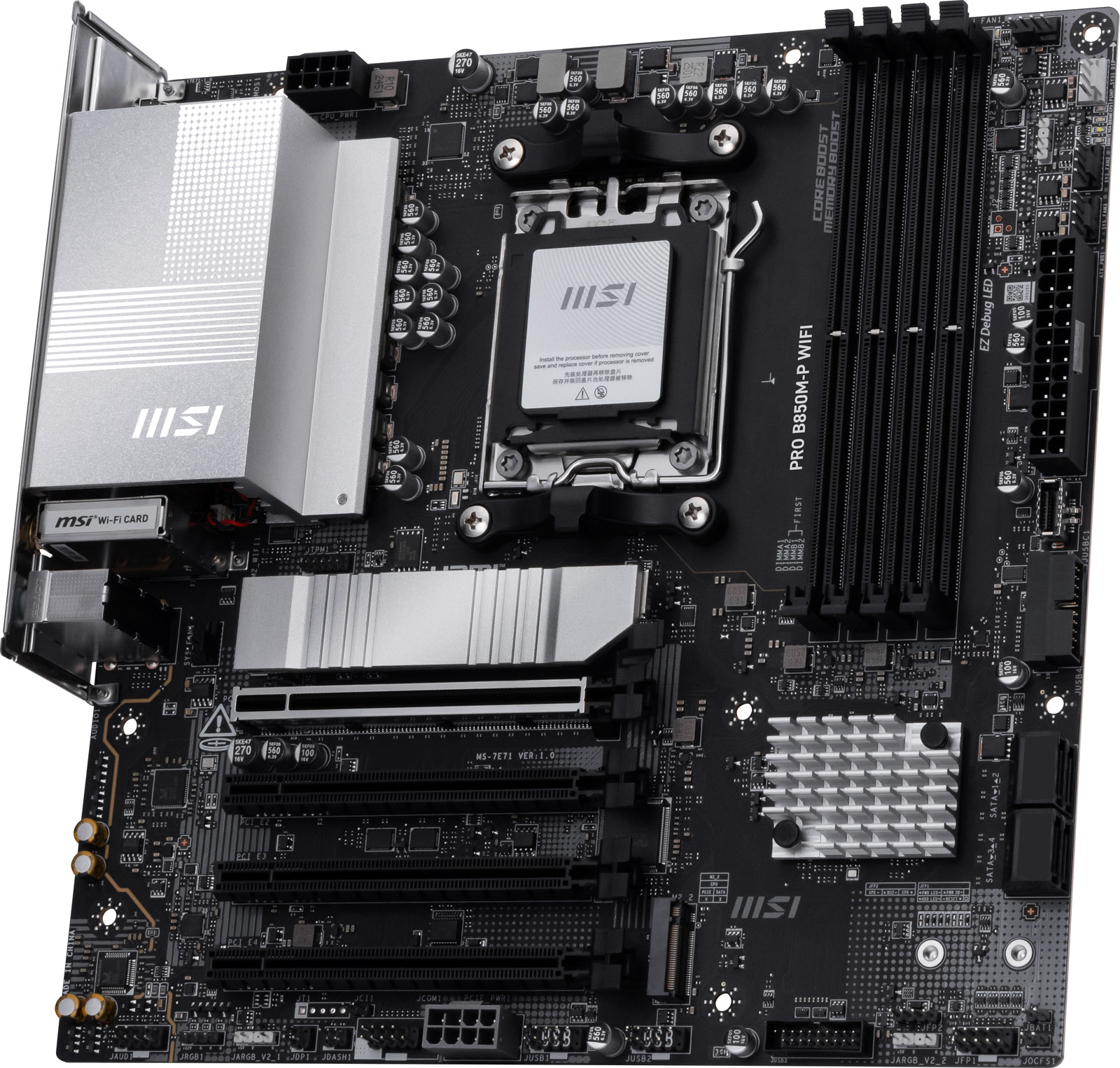

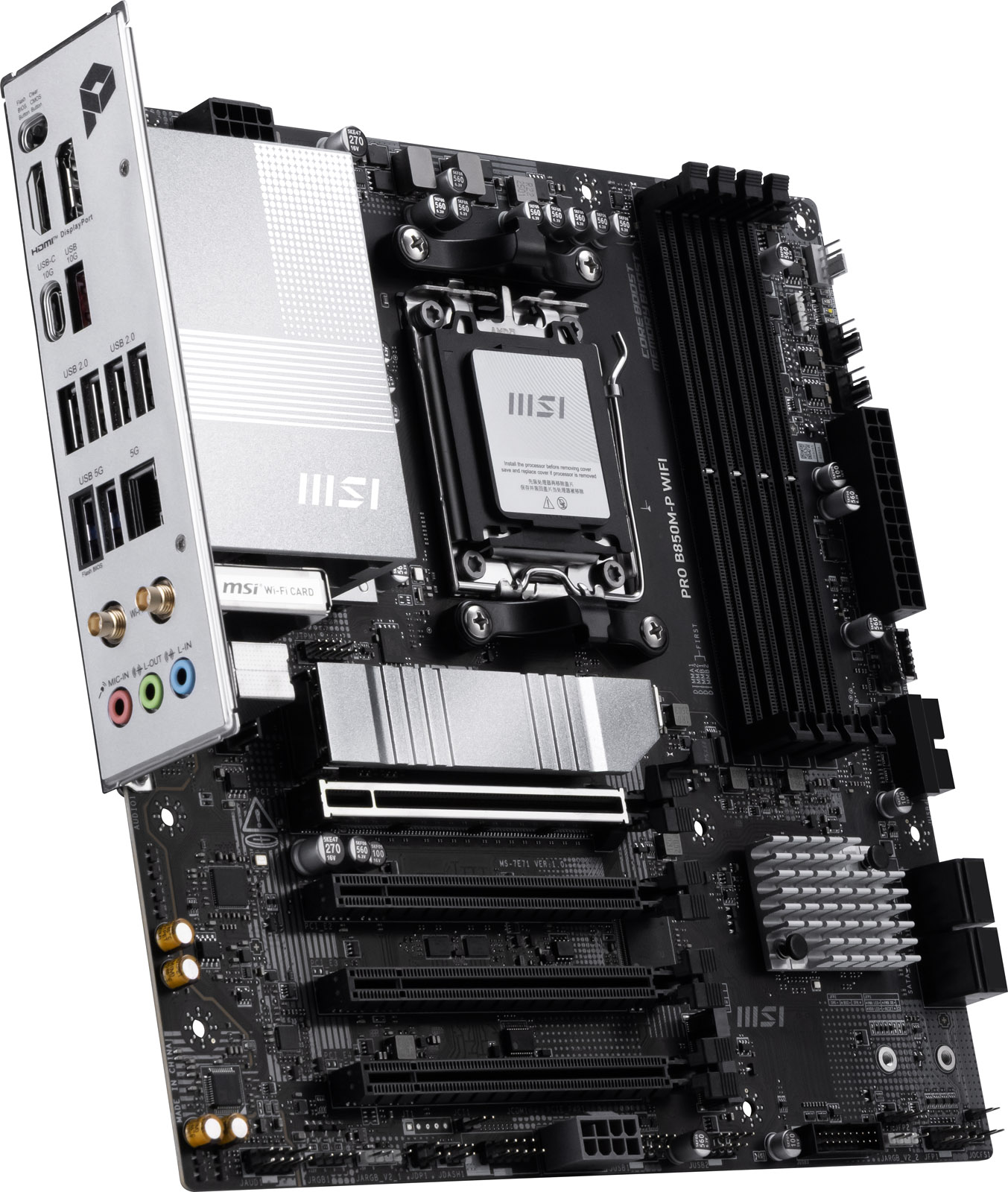

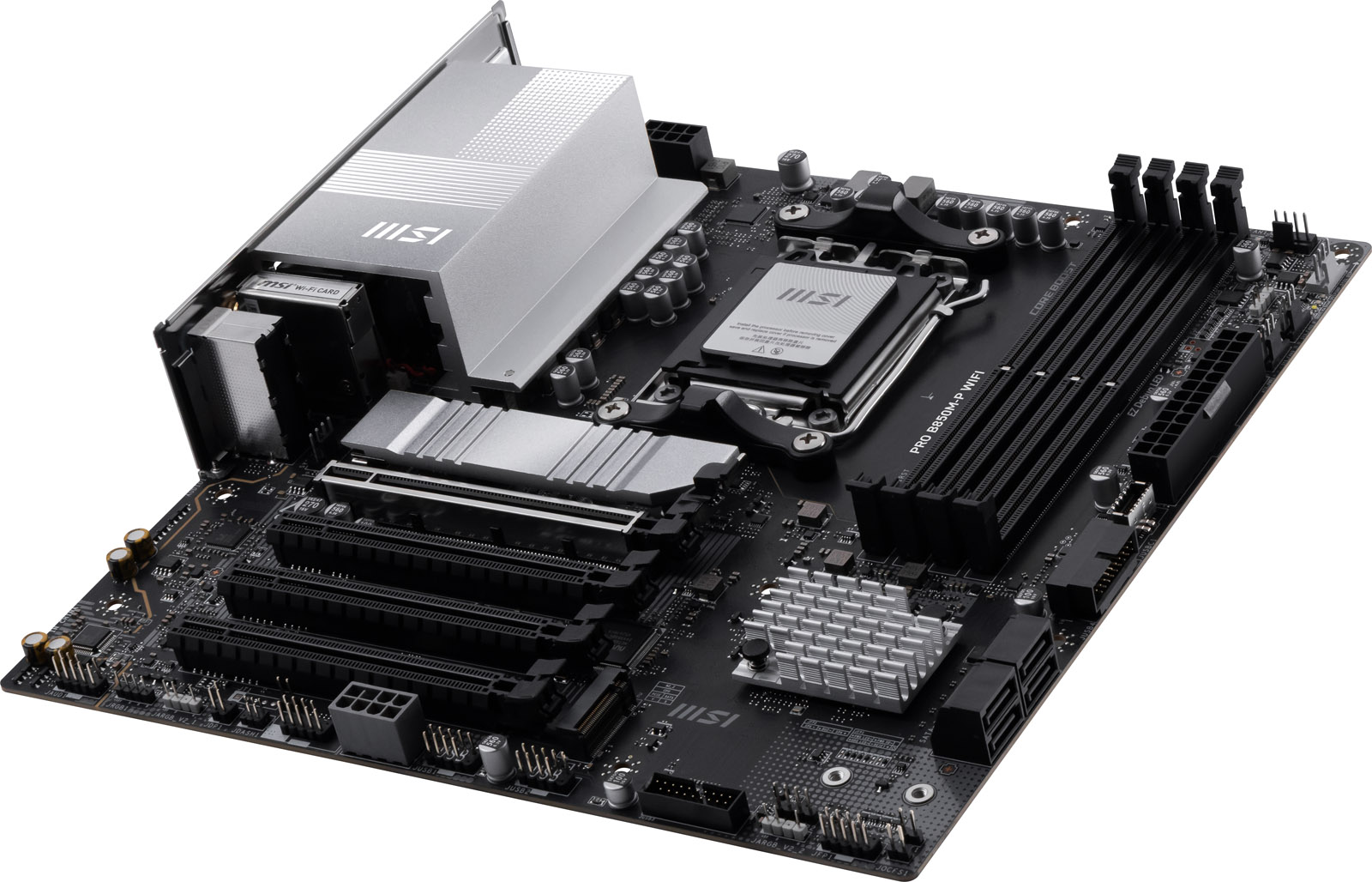

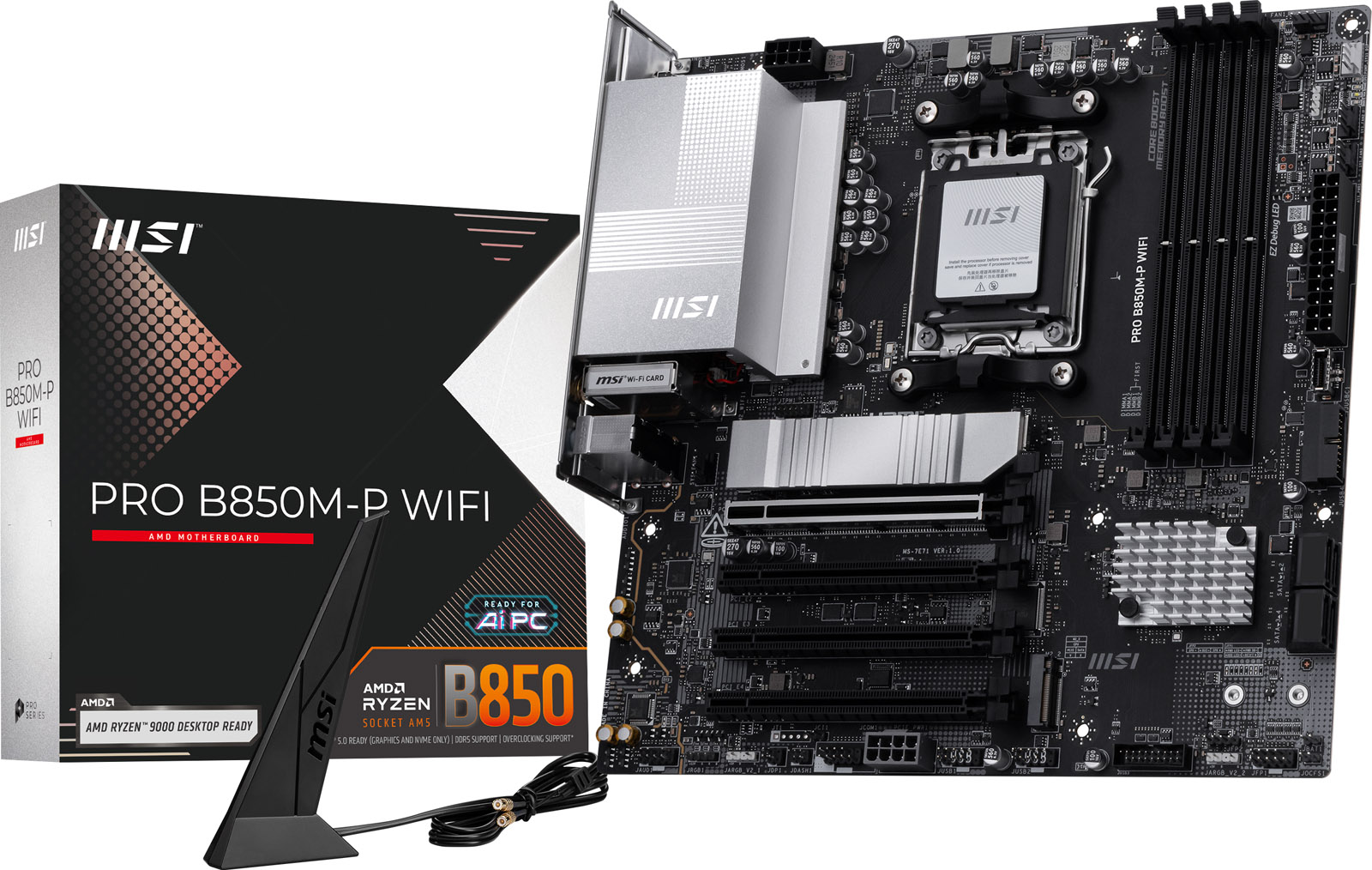

The PRO B850M-P WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.

Form Factor: mATX

Socket Type: AM5

Chipset: AMD B850

With exclusive Core Boost technology and EZ OC Tuning functions, the PRO B850M-P WIFI is able to sustain heavy CPU power loads to support system-demanding settings:

Digital PWM IC

7 Phase direct CPU power (P-PAK)

2 Phase SOC Power

1 Phase MISC Power

Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.

Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.

Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.

EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

*1DPC 1R Max. overclocking frequency 8200+ MT/s, supports AMD EXPO.

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.

1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor* and EZ PCIe Clip II)

3 x PCIe 3.0 x1 slots

*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

The PRO B850M-P WIFI motherboard features MSI's M.2 slots:

1 x Gen5 x4 128Gbps slot (with EZ M.2 Shield Frozr II)

1 x Gen4 x4 64Gbps slot

1 x Gen4 x2 32Gbps slot

The DIY Friendly designs optimize the assemble process and experience.

EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.

EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.

EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.

EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.

5G LAN: A Realtek 5Gbps LAN controller delivers a premium network experience.

Wi-Fi 7: Features the latest Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.

USB 10Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
