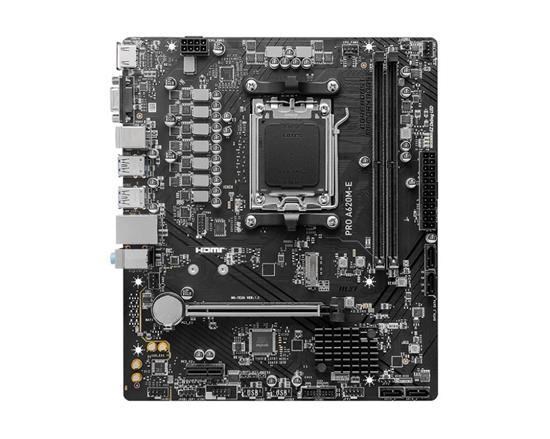

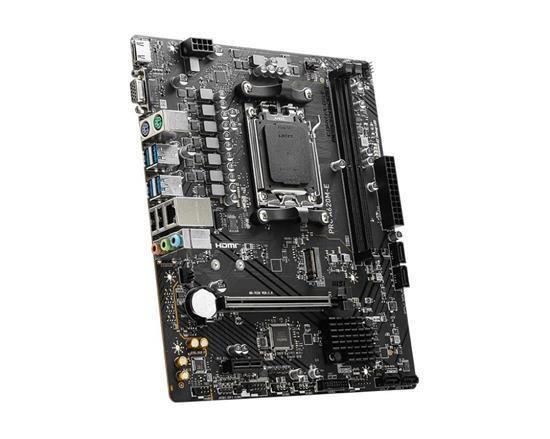

MSI PRO A620M-E mATX Motherboard for AMD AM5 CPUs

Compare

MSI PRO A620M-E mATX Motherboard for AMD AM5 CPUs

PRO A620M-E

Key Features:

Form Factor: mATX
Socket: AM5
Memory: DDR5 (Max: 96GB)
Storage: 1 x M.2, 4 x SATA
USB: 6 port(s)

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

MSI PRO A620M-E mATX Motherboard for AMD AM5 CPUs

PRO A620M-E

Was £85.00

SAVE 20%

Now only

£67.99 inc VAT

Add to Basket

Available for delivery from Tuesday 12th August

or Click & Collect from Tomorrow

Hurry, only 2 left!

CCL Code: MBD3503

Form Factor: mATX
Socket: AM5
Memory: DDR5 (Max: 96GB)
Storage: 1 x M.2, 4 x SATA
USB: 6 port(s)

Overview

MSI PRO A620M-E mATX AMD DDR5 Socket AM5 Motherboard

Experience a motherboard that is tailored to professionals, featuring exceptional performance and a high quality build. Aimed at users who want a system that offers high productivity and efficiency, this MSI Pro Series motherbaord is the ideal choice! Built with effective cooling and power solutions, DDR5 support, full fan control, performance and memory that is reliable for multitasking.

COOLING FEATURES

The PRO A620M-E D5 has an chipset heatsink that is designed to reduce dust and noise, whilst also maintaining high efficiency of PCH. Manage speeds and temperatures for all your system and CPU fans in BIOS, with sotware that has a simplied interface. You can also benefit from setting 4 temperature targets, allowing fan speeds to be automated. Experience full fan control and utilise FROZR AI Cooling that is powered by MSI AI ENGINE.

POWER SOLUTIONS

Experience enhanced power solutions with the Core Boost Technology, that combines MSI's premium layout and optimised power design. Feel a faster and undistorted current delivery to the CPU with high precision. Combining the benefits of AMD default PBO (Precision Boost Overdrive) and MSI?s own OC settings, Performance Switch offers higher CPU performance.

Promotions

Get 5% off selected components when you buy 3 or more

*For a limited time, purchase three qualifying components from different categories and get 5% off at when you use code BUY3GET5 at checkout.

To see qualifying products, visit our promotion here.
Terms & Conditions apply.

Promotional Period: From 10AM July 16^th 2025 till August 31^st 2025, while stocks last.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on selected qualifying products and in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one graphics card, one motherboard and one cooler). It will not apply to multiples from categories (e.g. three SSDs).

Discount will be applied to the items in your basket when you use code "BUY3GET5" at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code. Product exclusions may apply to this offer at our discretion.

Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 10AM July 16th 2025 till August 31st 2025, while stocks last.

Specifications

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	Ryzen 8000/ 7000 Series Desktop Processors
64-bit Support	Yes
Socket	AM5

Rear Panel I/O Ports

USB Ports	4 x USB 3.0 2 x USB 2.0
HDMI Port	1 x HDMI 2.1
VGA Port	1 x D-Sub
Keyboard Port	1 x PS/2
Mouse Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors	4 x SATA III
USB Connectors	1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 2 x System fan headers
Serial Connectors	1 x COM header
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Type 2260/2280 (PCIe Gen4) 1 x 4-pin RGB LED header

Memory

Memory Bus Speed	Up to 6800 MHz
Memory Type	DDR5
Maximum RAM	96 GB
Memory Slot	2 x DIMM

Motherboard

Northbridge	AMD A620
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC897

Network

Integrated Network	Realtek 8111H
Network Speeds Supported	Up to 1 Gbps
Wireless LAN	No
Bluetooth	No

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	mATX Motherboard
In The Box	Motherboard EU Regulatory Notice Quick Installation Guide M.2 Screw/Standoff Set SATA Cable I/O Shield
Width	211 mm
Length	244 mm

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	No
Motherboard Width	211 mm
Motherboard Height	244 mm
mSATA Supported	No
U.2 Supported	No
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	6 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	Yes
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	AMD A620
Thunderbolt	No
Motherboard Model	MSI PRO A620M-E
USB 3.1 Support	No
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	None
RGB Header Type	4-Pin RGB
Addressable RGB	No
Internal USB Type-C Header	No
Power Requirement (auto)	60 W
Max Memory Speed Supported (Non-overclocked)	4800 MT/s
Max Memory Speed Supported (overclocked)	6000 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	1
Maximum NVMe M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
