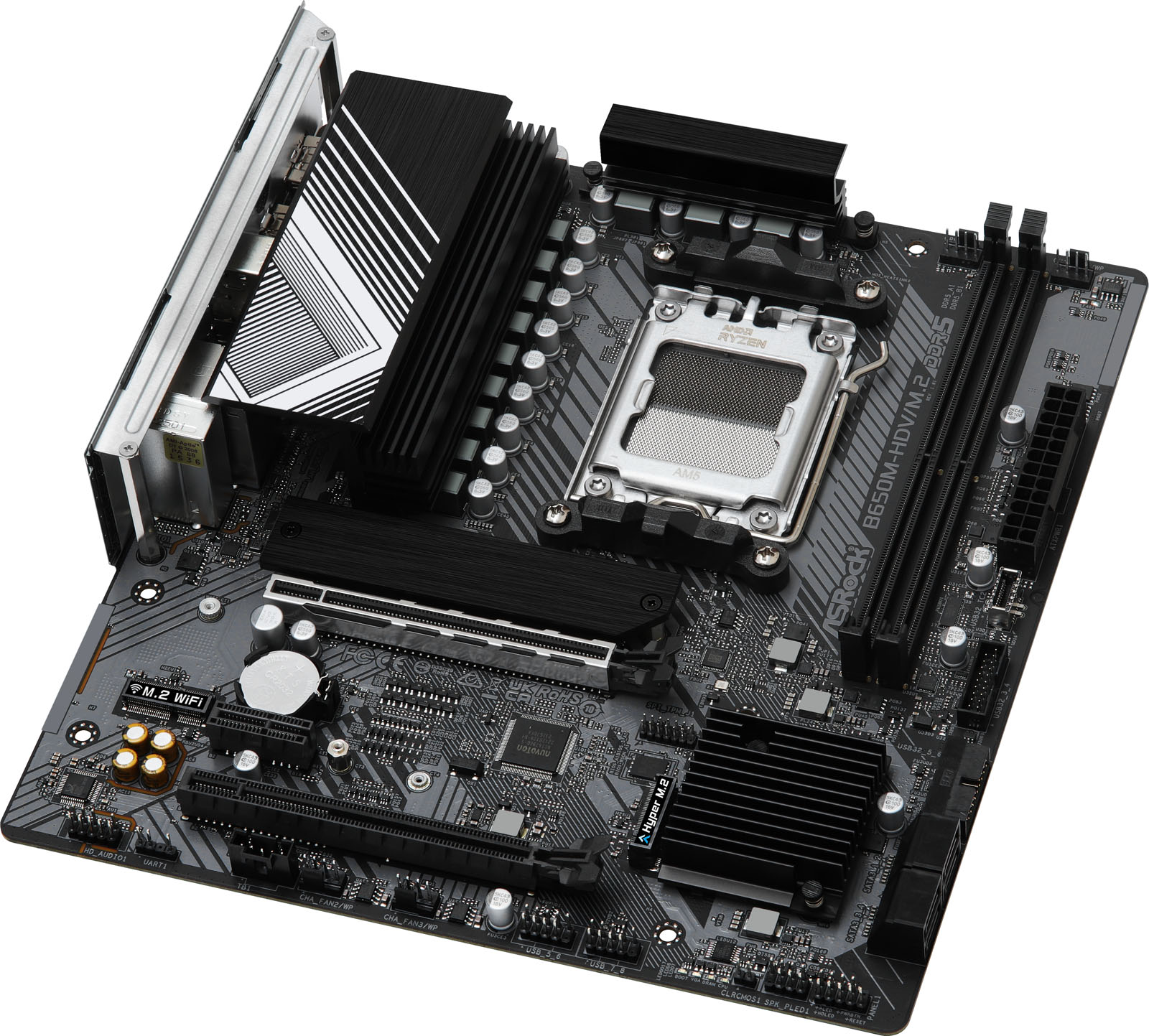

ASRock B650M-HDV/M.2 mATX Motherboard for AMD AM5 CPUs

ASRock B650M-HDV/M.2 mATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3644

Was £117.43

SAVE £14

Now only

£102.99 inc VAT

  • ASRock B650M-HDV/M.2 mATX Motherboard for AMD AM5 CPUs
  • ASRock B650M-HDV/M.2 mATX Motherboard for AMD AM5 CPUs
  • ASRock B650M-HDV/M.2 mATX Motherboard for AMD AM5 CPUs
  • ASRock B650M-HDV/M.2 mATX Motherboard for AMD AM5 CPUs
  • ASRock B650M-HDV/M.2 mATX Motherboard for AMD AM5 CPUs
  • ASRock B650M-HDV/M.2 mATX Motherboard for AMD AM5 CPUs
  • ASRock B650M-HDV/M.2 mATX Motherboard for AMD AM5 CPUs

ASRock B650M-HDV/M.2 mATX Motherboard for AMD AM5 CPUs

90-MXBLA0-A0UAYZ

Key Features:

  • Form Factor: mATX
  • Socket: AM5
  • Memory: DDR5 (Max: 96GB)
  • Storage: 2 x M.2, 4 x SATA
  • USB: 7 port(s)

Save 5% when you buy 3 or more eligible different items with code BUY3GET5*

ASRock B650M-HDV/M.2 mATX Motherboard for AMD AM5 CPUs

90-MXBLA0-A0UAYZ

Was £117.43

SAVE £14

Now only

£102.99 inc VAT

Available for delivery from Tuesday 12th August

or Click & Collect from Tomorrow

10+ In Stock Now

CCL Code: MBD3644
  • Form Factor: mATX
  • Socket: AM5
  • Memory: DDR5 (Max: 96GB)
  • Storage: 2 x M.2, 4 x SATA
  • USB: 7 port(s)

Save 5% when you buy 3 or more eligible different items with code BUY3GET5*

Overview

ASRock B650M-HDV/M.2 Motherboard

Main Features

  • Supports AMD Socket AM5 Ryzen 8000 and 7000 Series Processors
  • 8+2+1 Power Phase, Dr.MOS
  • Supports DDR5 7200+ MHz (OC)
  • 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4)
  • 1 USB 3.2 Gen2 Front Type-C, 7 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 4 Front)
  • Dragon 2.5G LAN
  • Supports ASRock Auto Driver Installer, BIOS Flashback
Promotions

Get 5% off selected components when you buy 3 or more

*For a limited time, purchase three qualifying components from different categories and get 5% off at when you use code BUY3GET5 at checkout.

To see qualifying products, visit our promotion here.
Terms & Conditions apply.

Separation

Promotional Period: From 10AM July 16th 2025 till August 31st 2025, while stocks last.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on selected qualifying products and in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one graphics card, one motherboard and one cooler). It will not apply to multiples from categories (e.g. three SSDs).

Discount will be applied to the items in your basket when you use code "BUY3GET5" at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code. Product exclusions may apply to this offer at our discretion.

Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 10AM July 16th 2025 till August 31st 2025, while stocks last.

Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors Ryzen 8000 and 7000 Series Processors
64-bit Support Yes
Socket AM5

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.0
2 x USB 3.0
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
2 x USB 3.0 headers (supports 4 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
3 x Chassis/Water Pump fan headers
Thunderbolt Port(s) 1 x Thunderbolt AIC Connector (Supports ASRock Thunderbolt 4 AIC Card)
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2280 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen4)

Memory

Memory Bus Speed Up to 7200 MHz
Memory Type DDR5
Maximum RAM 96 GB
Memory Slot 2 x DIMM

Motherboard

Northbridge AMD B650
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 2 x PCI Express 4.0 x16 slots (@ x16/x4)
1 x PCI Express 4.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek ALC897

Network

Integrated Network Dragon RTL8125BG
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard

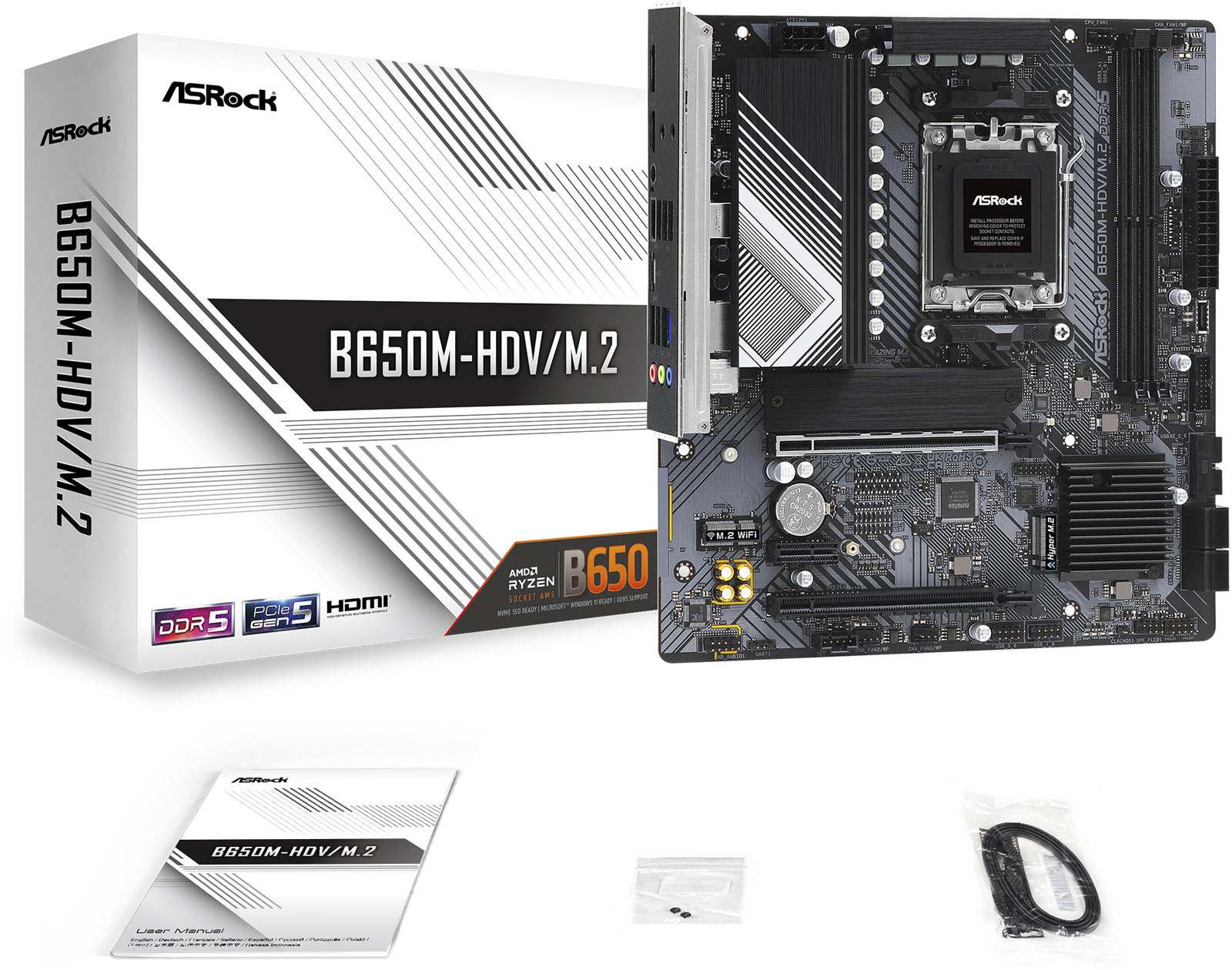

In The Box Motherboard
User Manual
2 x SATA Data Cables
2 x Screws for M.2 Sockets
Width 226 mm
Length 244 mm

Key Features

Wireless Network No
Motherboard Width 226 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 7 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset AMD B650
Thunderbolt No
Motherboard Model ASRock B650M-HDV/M.2
USB 3.1 Support No
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control None
RGB Header Type None
Addressable RGB No
Internal USB Type-C Header Yes
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 5200 MT/s
Max Memory Speed Supported (overclocked) 7200 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 4
No. of front USB-C ports supported 1

Item Details

Manufacturer ASRock
Manufacturer Code 90-MXBLA0-A0UAYZ
EAN 4710483942693
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code 90-MXBLA0-A0UAYZ
