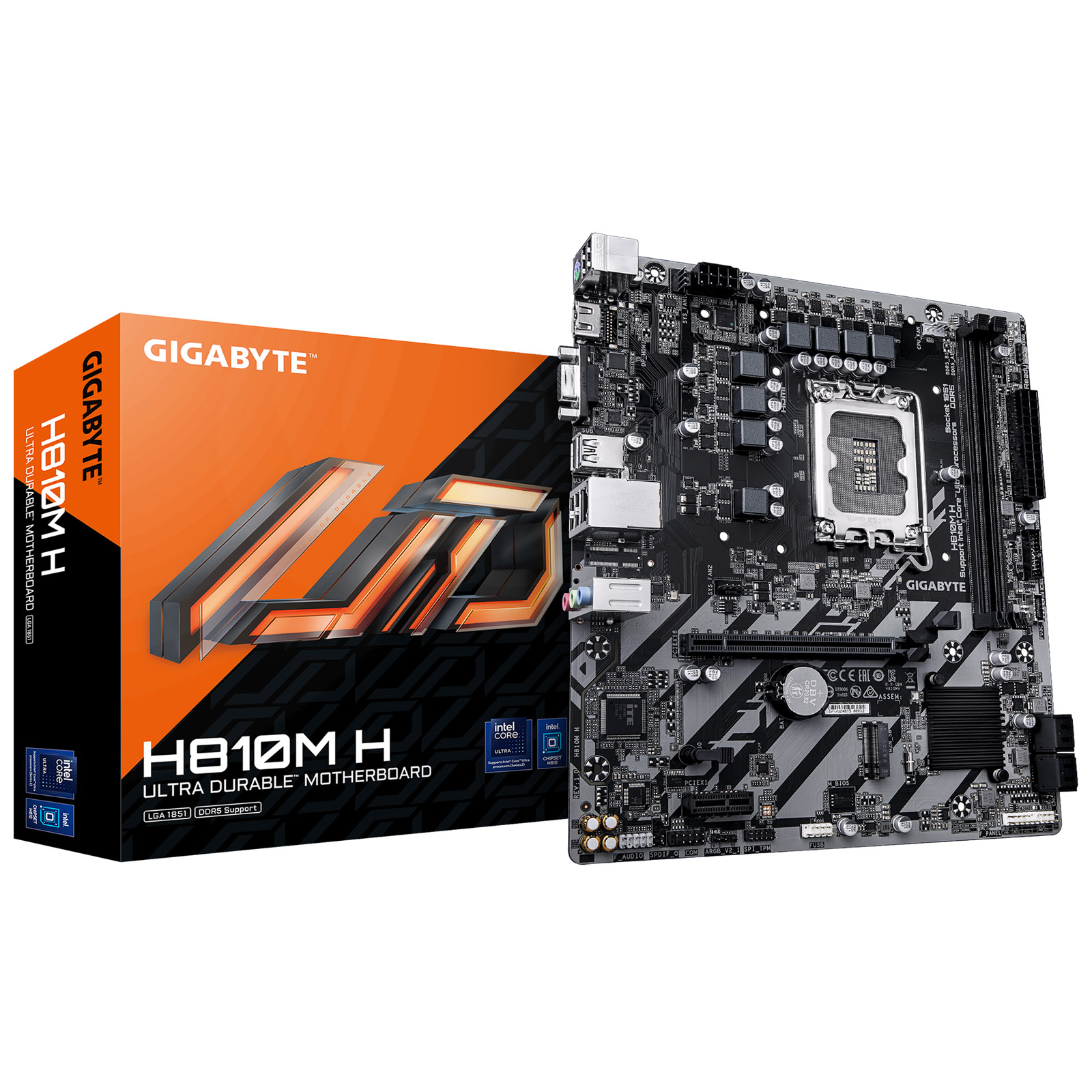

Gigabyte H810M H mATX Motherboard for Intel LGA1851 CPUs

Compare

Gigabyte H810M H mATX Motherboard for Intel LGA1851 CPUs

H810M H

Key Features:

Form Factor: mATX
Socket: LGA1851
Memory: DDR5 (Max: 128GB)
Storage: 1 x M.2, 4 x SATA
USB: 6 port(s)

Gigabyte H810M H mATX Motherboard for Intel LGA1851 CPUs

H810M H

£82.99 inc VAT

Add to Basket

Available for delivery from Tuesday 12th August

or Click & Collect from Wednesday 13th August

CCL Code: MBD3935

Form Factor: mATX
Socket: LGA1851
Memory: DDR5 (Max: 128GB)
Storage: 1 x M.2, 4 x SATA
USB: 6 port(s)

Overview

Gigabyte H810M H Socket LGA1851 mATX Motherboard

Main Features

Supports Intel Core Ultra processors (Series 2)
Hybrid 4+1+2 phases VRM solution
EZ-Latch: PCIe x16 Slot with Quick Release Design
Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
Fast Networking: GbE LAN
Extended Connectivity: HDMI

Promotions

Get 5% off selected components when you buy 3 or more

*For a limited time, purchase three qualifying components from different categories and get 5% off at when you use code BUY3GET5 at checkout.

To see qualifying products, visit our promotion here.
Terms & Conditions apply.

Promotional Period: From 10AM July 16^th 2025 till August 31^st 2025, while stocks last.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on selected qualifying products and in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one graphics card, one motherboard and one cooler). It will not apply to multiples from categories (e.g. three SSDs).

Discount will be applied to the items in your basket when you use code "BUY3GET5" at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code. Product exclusions may apply to this offer at our discretion.

Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 10AM July 16th 2025 till August 31st 2025, while stocks last.

Specifications

CPU

CPU Socket	Socket 1851
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	Intel Core Ultra Processors
64-bit Support	Yes
Socket	LGA1851

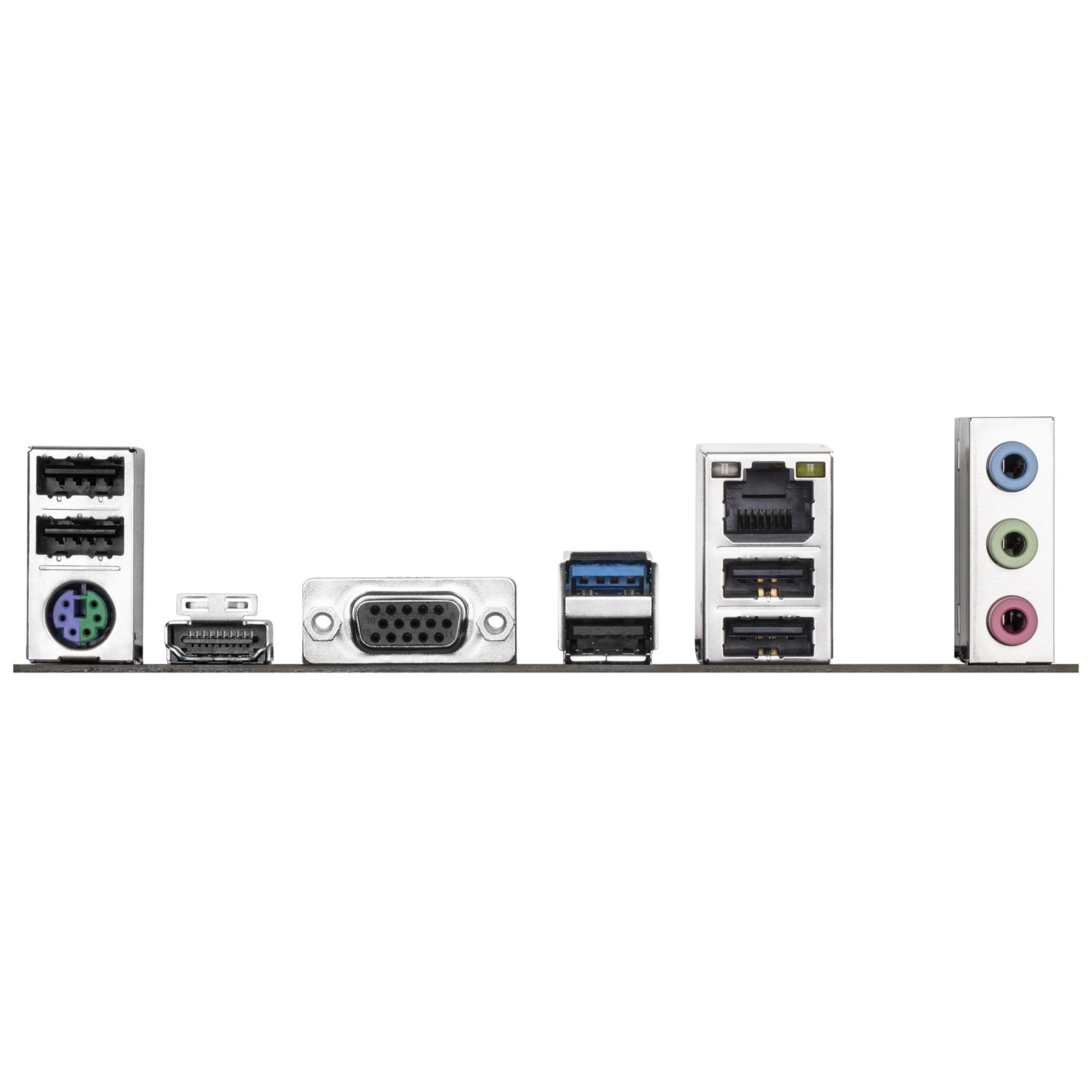

Rear Panel I/O Ports

USB Ports	1 x USB 3.0 5 x USB 2.0
HDMI Port	1 x HDMI 2.1
VGA Port	1 x D-Sub
Keyboard/Mouse Combo Port	1 x PS/2
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors	4 x SATA
USB Connectors	1 x USB-C 3.0 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 1 x USB 2.0 header (supports 2 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 2 x System fan headers
S/PDIF Connectors	1 x S/PDIF Out header
Serial Connectors	1 x COM header
TPM Header	1 x TPM header (For the GC-TPM2.0 SPI V2 module only)
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS
Other Connectors	1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4) 2 x 3-pin ARGB headers

Memory

Memory Bus Speed	Up to 6400 MT/s
Memory Type	DDR5
Maximum RAM	128 GB
Memory Slot	2 x DIMM

Motherboard

Northbridge	Intel H810
RAID Supported	Yes
RAID Format	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek

Network

Integrated Network	Realtek
Network Speeds Supported	Up to 1 Gbps
Wireless LAN	No
Bluetooth	No

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Jumpers	1 x Clear CMOS
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	mATX Motherboard
Width	215 mm
Length	244 mm

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	No
Motherboard Width	215 mm
Motherboard Height	244 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	6 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	Yes
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	No
Motherboard Form Factor	mATX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	Intel H810
Thunderbolt	No
Motherboard Model	Gigabyte H810M H
USB 3.1 Support	No
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	60 W
Max Memory Speed Supported (Non-overclocked)	5600 MT/s
Max Memory Speed Supported (overclocked)	6400 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	1
Maximum NVMe M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	2
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
