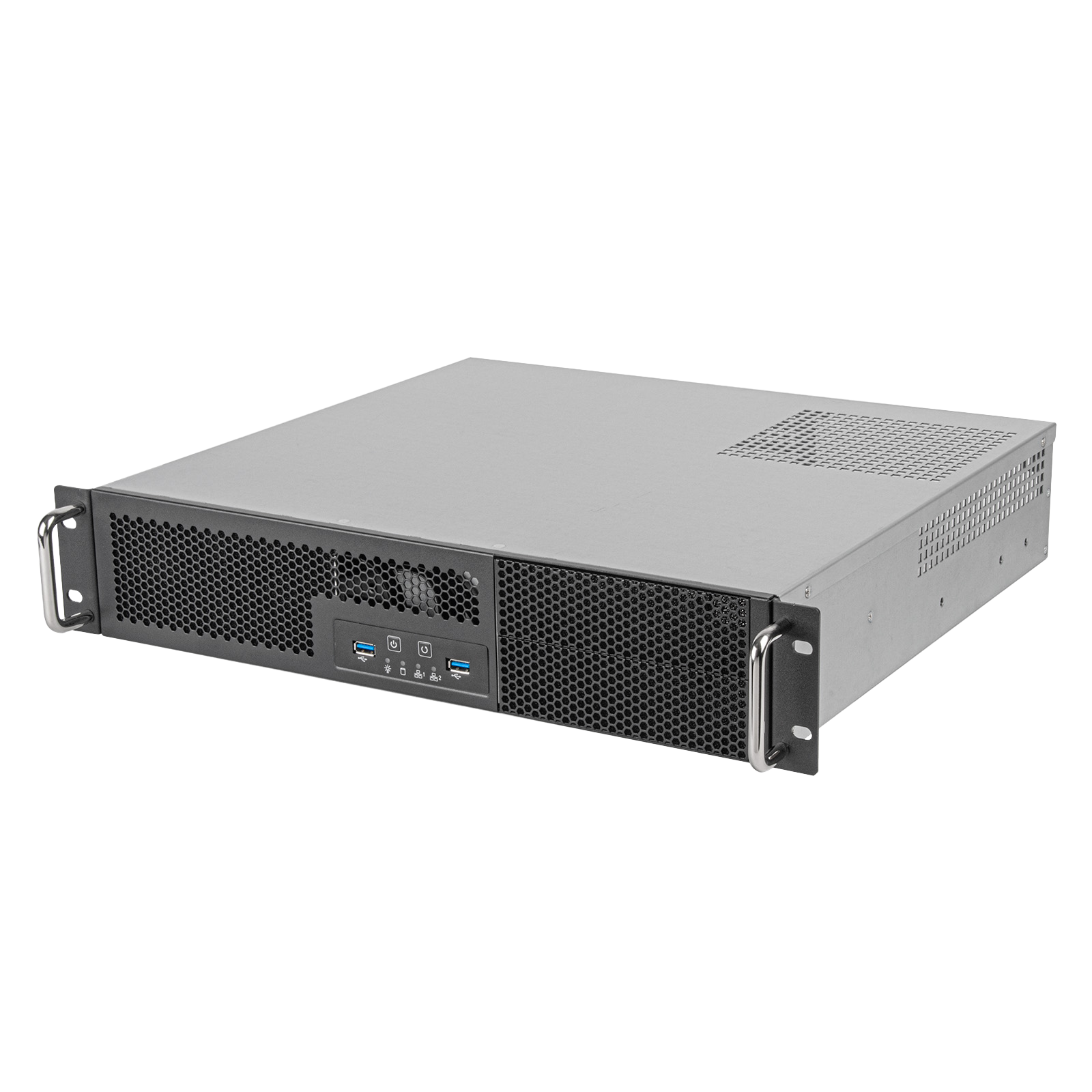

Silverstone RM23-502-MINI Rackmount Server Case - Black

Compare

Silverstone RM23-502-MINI Rackmount Server Case - Black

SST-RM23-502-MINI

Key Features:

Max Motherboard Size: mATX
Solid Side
1 x 2.5" / 2 x 3.5" Bay(s)
2 x 5.25" External Bay(s)

2U dual 5.25" drive bay Micro-ATX rackmount industrial server chassis with USB 3.1 Gen1 interface

Silverstone RM23-502-MINI Rackmount Server Case - Black

SST-RM23-502-MINI

£139.99 inc VAT

Add to Basket

Available for delivery from Friday 15th August

or Click & Collect from Friday 15th August

CCL Code: CAS5669

Max Motherboard Size: mATX
Solid Side
1 x 2.5" / 2 x 3.5" Bay(s)
2 x 5.25" External Bay(s)

Overview

Well-equipped drive bays

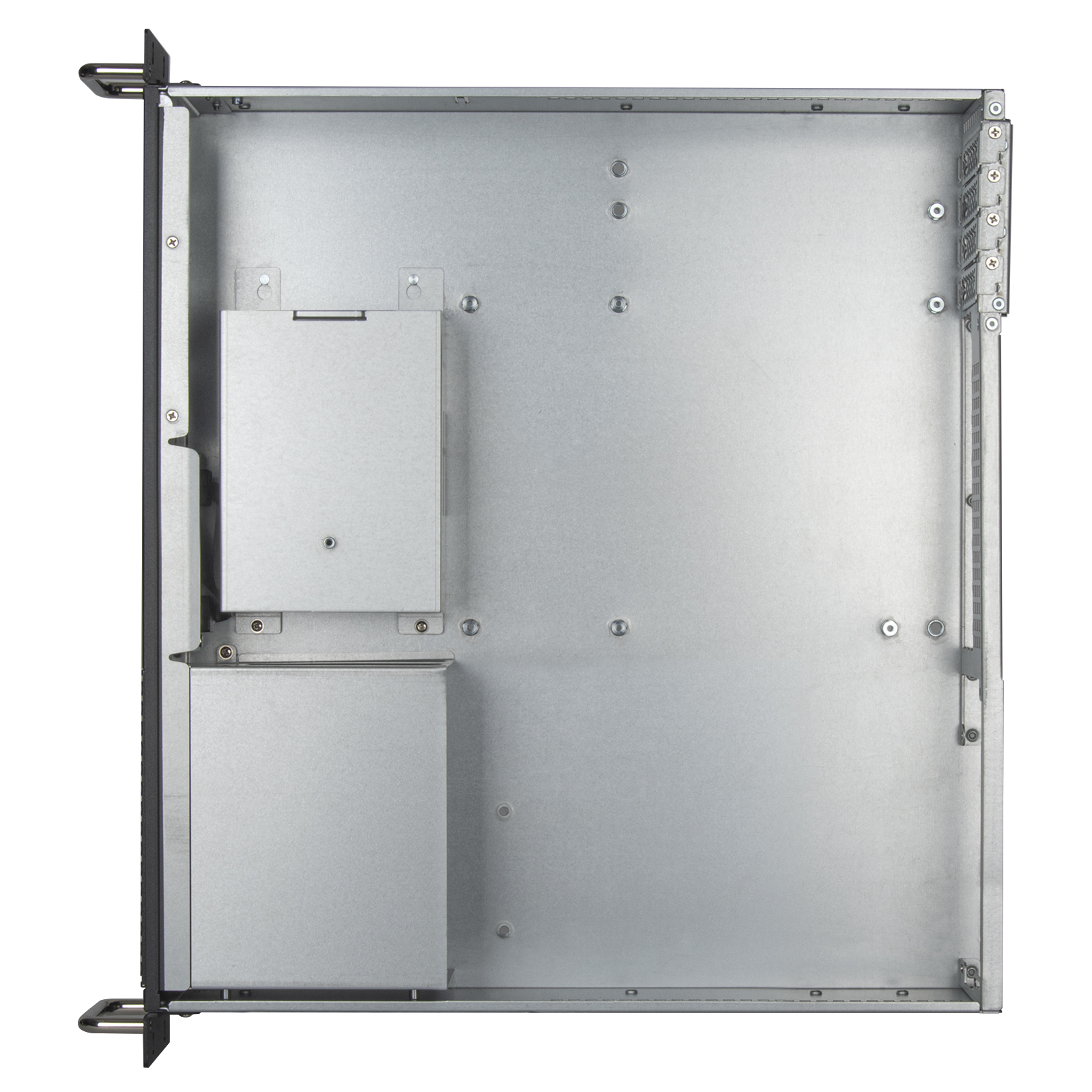

Supports up to 2 x 5.25" drives externally, and up to 2 x 3.5" HHDs & 1 x 2.5" SSD internally.

Outstanding cooling capabilities

A built-in fan bracket at the front supports 2 x 8025mm fans which supplies plentiful airflow for a 2U form factor system.

Numerous PSU form factor compatibility

As a miniature sizing of the RM23-502, compatible PSU selection has greater flexibility than the original with support for ATX (PS2), 2U Single or 2U Redundant*

*We recommend that the combined length of the power supply and 5.25" device does not exceed 350mm, allowing 40mm of space for the power cables.
**RM23-502-MINI’s USB internal cable is 600mm long, so if you are connecting an external enclosure to the USB3.1 port, we recommend using it with shorter cables to prevent performance loss.

Main Features

Supports ATX (PS2) / 2U single / 2U redundant power supplies
Supports 1 x 2.5" SSD and up to 2 x 3.5" HDD

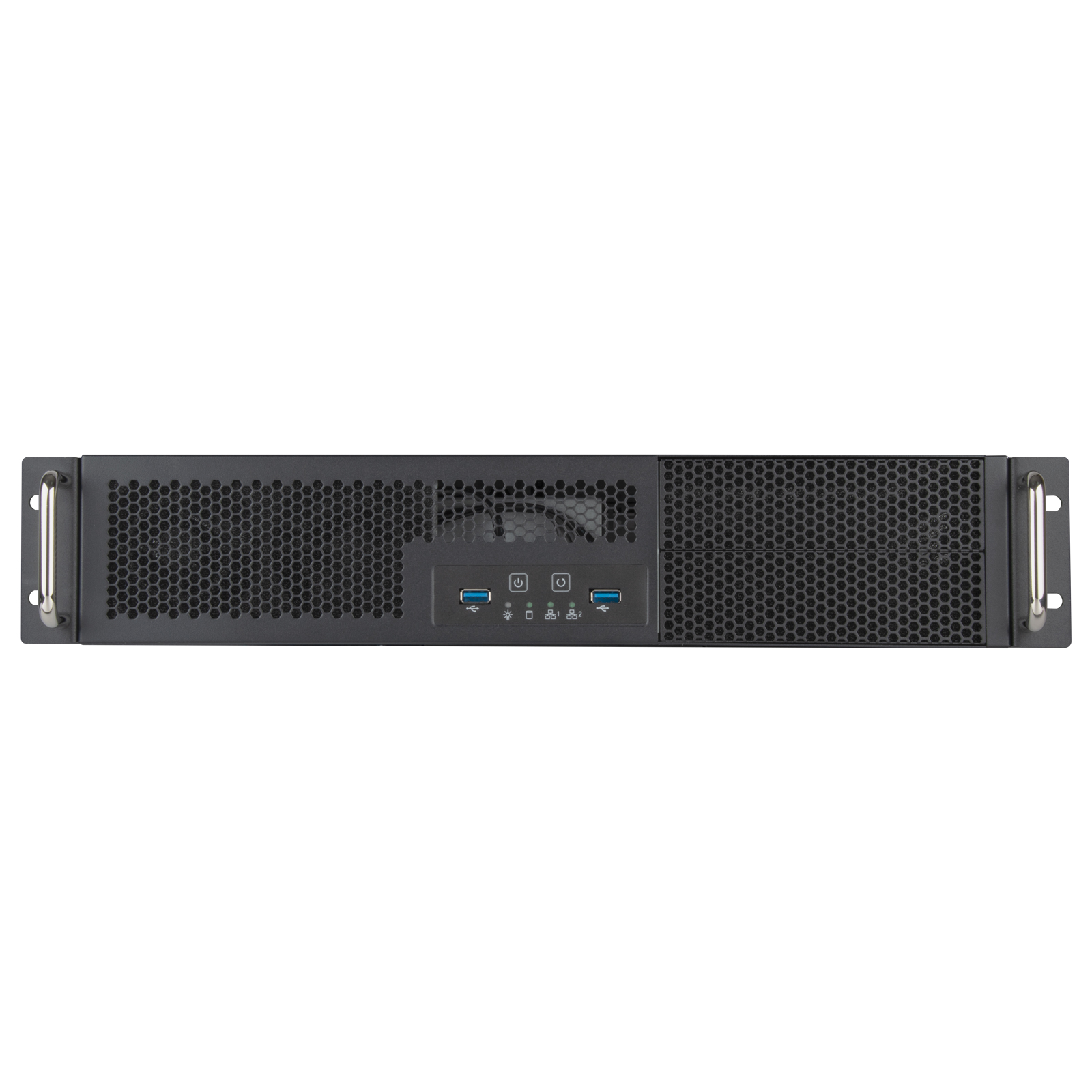

5Gbps USB 3.1 Gen1 interface (downward compatible with USB 2.0 & USB 1.1)
Dual 5.25" expansion bay brings flexibility in installing 5.25" devices
Built-in fan bracket supports up to two 80mm x 25mm fans
Supports Micro-ATX motherboard (9.6" x 9.6")

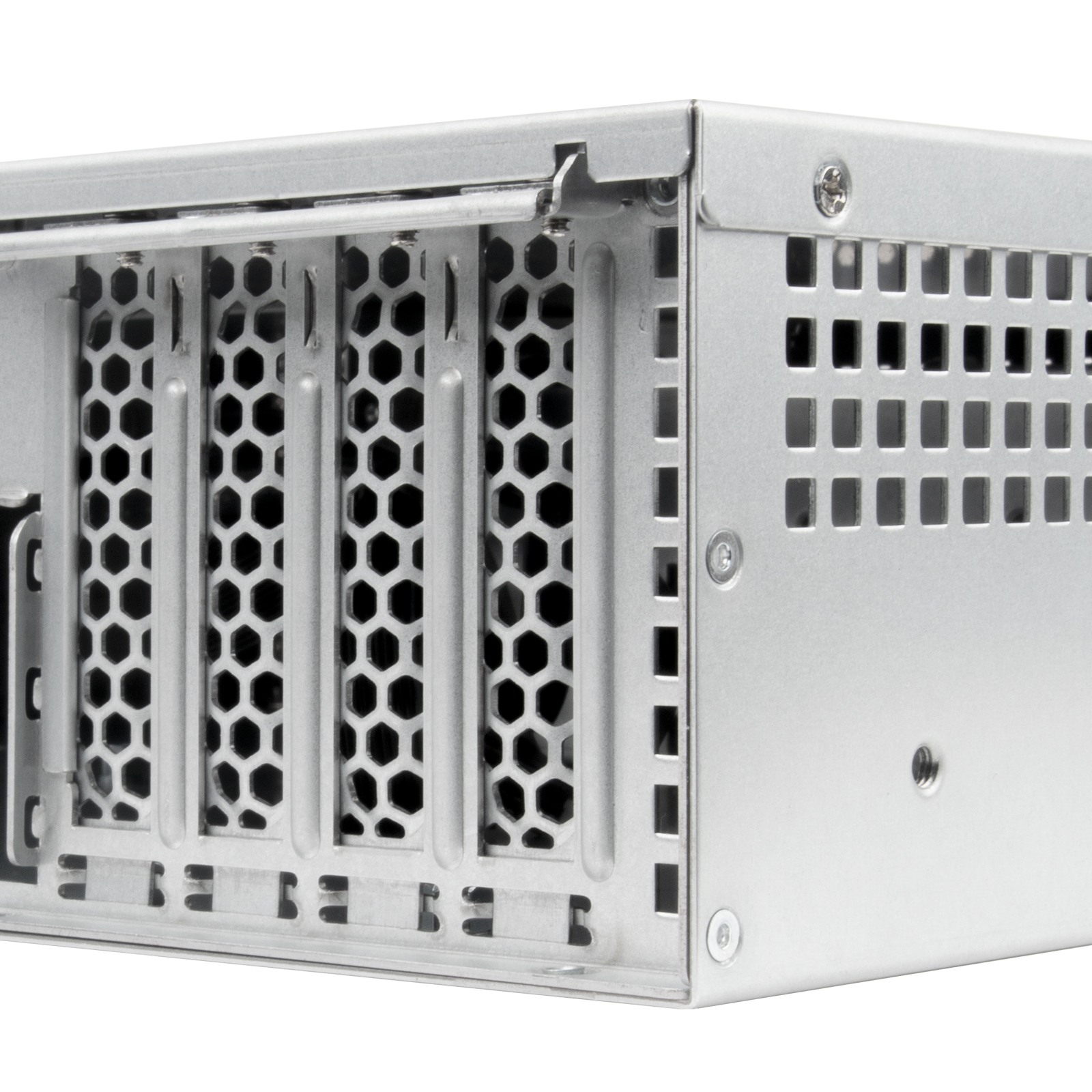

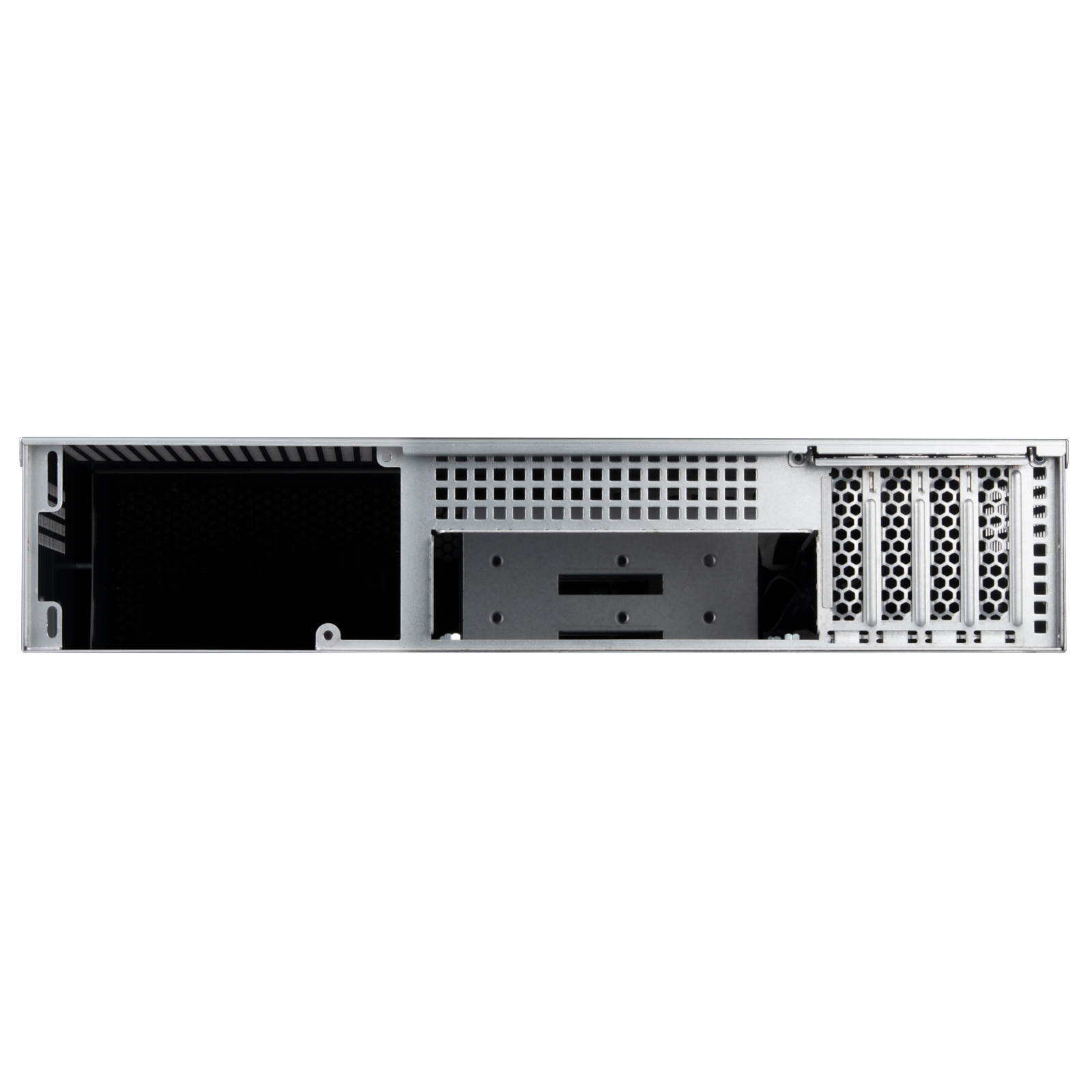

Supports 4 low-profile PCI / PCIe slots

Promotions

Get 5% off selected components when you buy 3 or more

*For a limited time, purchase three qualifying components from different categories and get 5% off at when you use code BUY3GET5 at checkout.

To see qualifying products, visit our promotion here.
Terms & Conditions apply.

Promotional Period: From 10AM July 16^th 2025 till August 31^st 2025, while stocks last.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on selected qualifying products and in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one graphics card, one motherboard and one cooler). It will not apply to multiples from categories (e.g. three SSDs).

Discount will be applied to the items in your basket when you use code "BUY3GET5" at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code. Product exclusions may apply to this offer at our discretion.

Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 10AM July 16th 2025 till August 31st 2025, while stocks last.

Specifications

Storage

External Expansion Bays	2 x 5.25"
Internal Expansion Bays	1 x 2.5" 2 x 3.5"

Expansion

Expansion Slots

4 x Low Profile

Interfaces/Ports

USB Ports

2 x USB 3.0

Electrical

Cooling System	Front: Supports 2 x 80mm fans
Power Supply	ATX, 2U or 2U Redudnant supported

Warranty

2 Years

Physical

Form Factor	2U Rackmount Chassis
Case Colour	Black
Material	1mm Steel
Motherboard Compatibility	mATX Mini-ITX
Width	430 mm
Depth	400 mm
Height	88.5 mm
Weight	4.8 kg

Key Features

Max Motherboard Width	244 mm
Max Motherboard Height	244 mm
Supports AIO Cooler	No
Main Colour	Black
Case Type	Rack Server
Case Form Factor	Rackmount Server
Power Supply Included	No
Optimised for	Server
80Plus Rated	No
PSU Form Factor	ATX
Illuminated	No
L.E.D Fan	No LED
Max 3.5" Drives	2
External 5.25" Bay	2
Max 2.5" Drives	1
ATX	No
Micro-ATX	Yes
ITX	Yes
E-ATX	No
Cooler Height	65 mm
Built-in Card Reader	No
USB Type-C Support	No
Side Panel Type	Solid
PSU Depth	140 mm
Skip Audio Test	Yes
RGB LED Controller Included	No
LED Strip(s) Included	No
Maximum Motherboard Size Supported	mATX
RGB Software Type	None
Total 2.5" + 3.5" drive bays	3
USB3.0 ports	2
Low profile expansion	Yes
Create Your Own Gaming PC (CCL)	No
Back Connect Support	No
