Gigabyte GeForce RTX 5060 Ti GAMING OC 8GB GDDR7 Graphics Card

Compare

Gigabyte GeForce RTX 5060 Ti GAMING OC 8GB GDDR7 Graphics Card

GV-N506TGAMING OC-8GD

Key Features:

8GB GDDR7 Graphics Memory
PCI Express 5.0 x8 Interface
Overclocked Edition
Outputs - HDMI and Display Port

Gigabyte GeForce RTX 5060 Ti GAMING OC 8GB GDDR7 Graphics Card

GV-N506TGAMING OC-8GD

Was £488.80

SAVE £102

Now only

£385.99 inc VAT

Add to Basket

Available for delivery from Tuesday 12th August

or Click & Collect from Tomorrow

8 In Stock Now

CCL Code: VGA7403

8GB GDDR7 Graphics Memory
PCI Express 5.0 x8 Interface
Overclocked Edition
Outputs - HDMI and Display Port

Overview

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

Main Features

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060 Ti
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
RGB lighting
Dual BIOS (Performance / Silent)
Reinforced structure

Promotions

Get 5% off selected components when you buy 3 or more

*For a limited time, purchase three qualifying components from different categories and get 5% off at when you use code BUY3GET5 at checkout.

To see qualifying products, visit our promotion here.
Terms & Conditions apply.

Promotional Period: From 10AM July 16^th 2025 till August 31^st 2025, while stocks last.

Terms and conditions apply. Click here to view details.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on selected qualifying products and in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one graphics card, one motherboard and one cooler). It will not apply to multiples from categories (e.g. three SSDs).

Discount will be applied to the items in your basket when you use code "BUY3GET5" at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code. Product exclusions may apply to this offer at our discretion.

Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 10AM July 16th 2025 till August 31st 2025, while stocks last.

Specifications

GPU

Chipset Manufacturer	NVIDIA
Chipset Model Name	GeForce RTX
Chipset Model Number	5060 Ti
Chipset Additional Information	GAMING OC
Boost Chip Clock	2647 MHz
Graphics Core	CUDA
Number of Cores	4608

Memory

Memory Size	8192 MB
Memory Clock	28 Gbps
Memory Type	GDDR7
Memory Width	128 bit
Memory Bandwidth	448 GB/s

Interfaces/Ports

Video Card Bus Type	PCI Express
Video Card Bus Version	5.0 x8

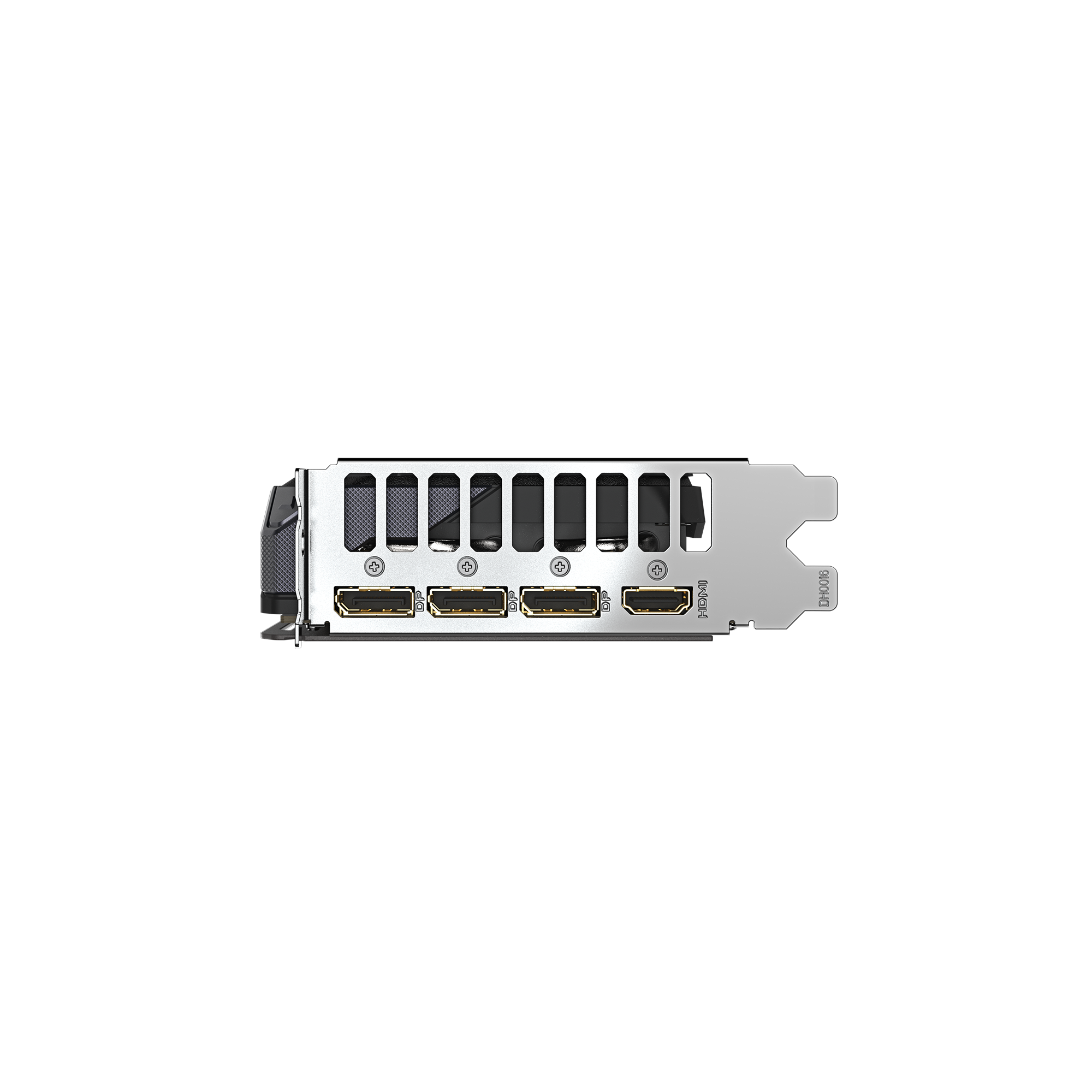

HDMI Port	1 x HDMI 2.1b
DisplayPort	3 x DisplayPort 2.1b

Resolution

Multiple Monitor Support (Max)	Yes (4)
Maximum Resolution	7680 x 4320

System Requirements

1 x PCI Express 5.0 x16 slot

Electrical

Power Connector	1 x 8-pin PCIe
Power Consumption	180 W
Recomended Power Supply	650 W

Physical

Form Factor	Graphics Card
In The Box	Graphics Card Quick Guide
Width	40 mm (Dual Slot)
Depth	281 mm
Height	119 mm

Warranty

3 Years

Key Features

Interface Type	PCI Express 5.0 x8
Config Gaming x8 (CB/CCL)	Yes
Graphics Memory Type	GDDR7
Main Colour	Black
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
Graphics Usability	Gaming
DisplayPort Connection	Yes
Direct X Support	Direct X 12
Cooler Type	Dynamic Fan Inc. 0dB Mode
Low Profile	No
NVIDIA GeForce	RTX 5060 Ti
PCIe Pin Type	6+2-Pin
Cooling Technology	Dynamic Fan Inc. 0dB Mode
VR Ready	NVIDIA
GPU Length	281 mm
Card Width	2
Power Requirement (auto)	180 W
GPU Power (TDP)	180 W
Graphics card count	1
PCI Express Power Pins (female)	8
PCIe Physical Slot required	16
12VHPWR 16-pin Connector	No
AI Ready	Yes
